 Feature

PART NO:69000020


Name:PR SC201 MM (VB-10) Off Road 1-10 2WD Short Course Truck Kit
 Specification
Specifications
Motor: Electric
Chassis Kick-up: 25-degrees
Hardware: Full metric
Bearings: Shields Metal Ball Bearings

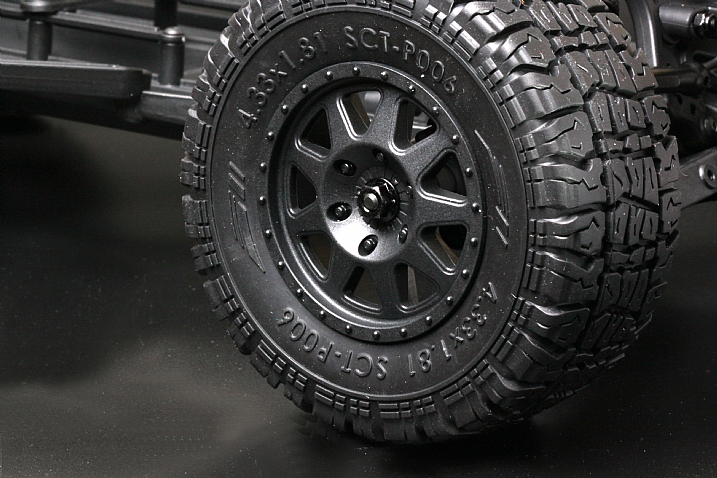

Wheels : Wheels with 12mm hex (front and rear)
Spur Gear: 73-75-77-(81)-83-tooth 48-Pitch
Drivetrain:2WD(MM)
Motor: Electric 540-sized
Kit

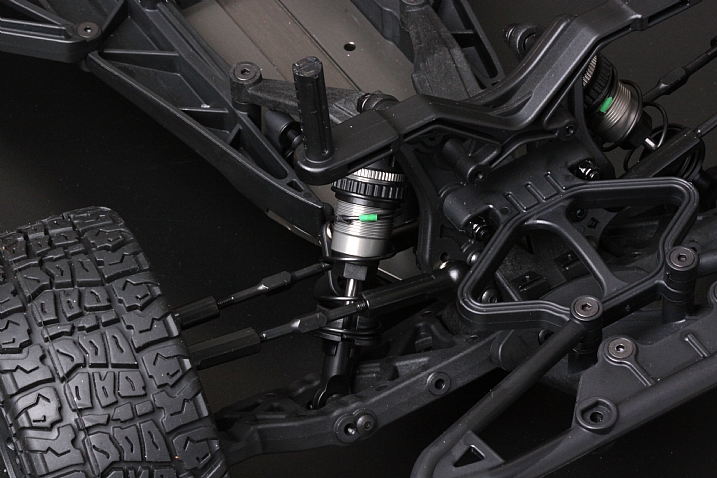

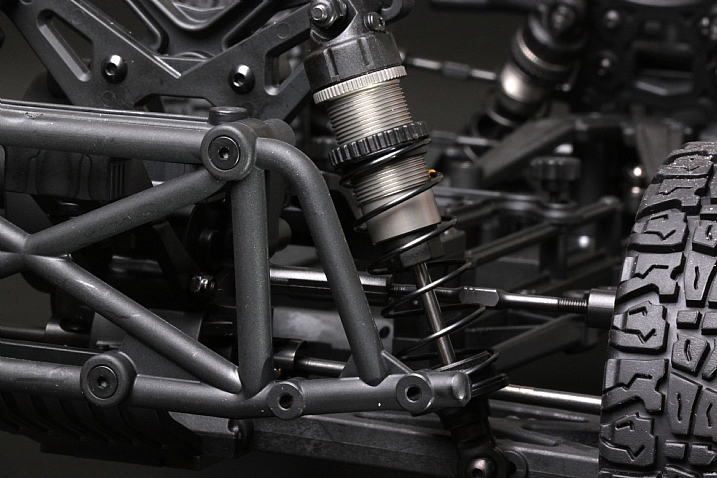

Shock Type: Oil Aluminum Shocks

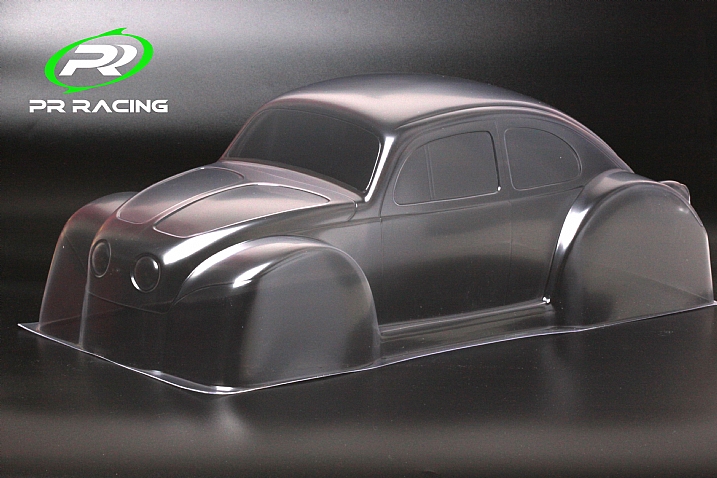

Body: (Clear)
Driveshafts: Full set of 2 CVA
1/10 SC Tires, inserts
Width: 296 mm
Weight: 1000-11100g (weight varies with choice of electronics, tires & body)
Wheelbase: 325mm-329mm
Gear Ratio: 2.6:1
Battery choice: 7.4V/4000-6000mAh approx,


Items required
Metric 1.5mm, 2.0mm hex tools
Metric 5.5mm, 7.0mm Nut Driver
2 Channel Surface Radio System (Minimum)
1/10 ESC, Motor & Pinion Gear
High-Speed Servo
2S LiPo Battery & Compatible Lipo Charger
Polycarbonate Paint for Bodies
Tires CA Glue
Silicon diff oil
LOK threadlocker


https://youtu.be/uQQa38vJ-Yw

https://www.youtube.com/watch?v=hRPtoqE7XRY
