  PR SC 2WD PRO KIT   PR SC-201 2WD - kit(Gear Diff Version)

PART NO:69000010

Name:PR SC-201  2WD - kit(Gear Diff Version)


Name: PR SC-201  2WD - kit(Gear Diff Version)

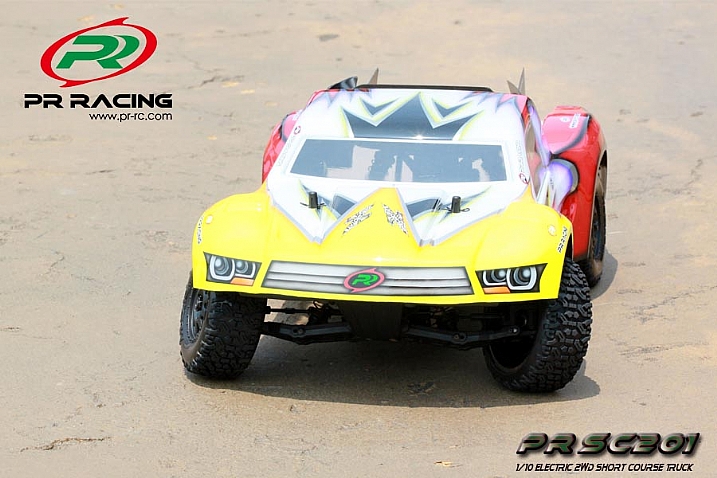

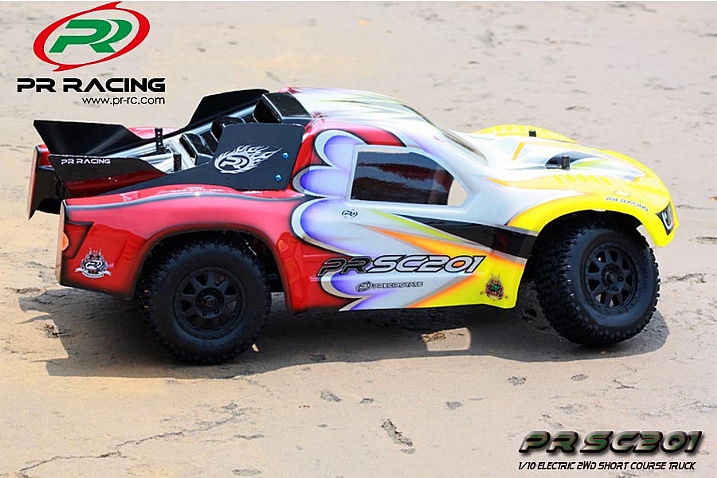

PR Racing SC201 1/10 Electric 2WD Short Course Truck

We choose 7075 aluminum alloy high hardness material on chassis, it could use mid motor and rear motor configuration.
Following PR 2WD C brace and steering stand design to promote the fluency of reaction, using big cylinder shock to upgrade stability and suspension strut, by using various parts and strong allocation to achieve the biggest sliding ability.
You can have new sense of driving through PR SC201 1/10 2WD design.

 Specifications

l   Providing the biggest stability when cars drive, with high hardness material 7075 chassis.

l   Can choose two configurations (Shorty battery and Long battery.)

l   It has gear differential to achieve well and strong handling.

l   Big bore shock, using intensive aluminum alloy metal to upgrade shock fluency-degree; you can drive easier even if you drive on difficult road!

l   Can choose central motor or rear motor according to high grip or low grip place.

Specifications

l   Motor: Electric

l   Chassis Kick-up: 25-degrees

l   Hardware: Full metric

l   Bearings: Sealed Metal Ball Bearings

l   Wheels : Wheels with 12mm hex (front and rear)

l   Spur Gear: 73-75-77-81-83-tooth 48-Pitch

l   Drivetrain:2WD(RM&MM)

l   Motor: Electric 540-sized

l   Kit/RTR: Kit

l   Shock Type: Oil-Filled Aluminum Shocks with Bladders

l   Body: No attach body

l   Driveshafts: Full set of 2 Aluminum CVDs

l   Width: 296 mm

l   Weight: 1000g-1100g. Not included body & tires.

l   Wheelbase: 329mm

l   Gear Ratio: 2.6:1

l   Battery choice: 7.4V/4000-6000mAh approx,

l   Minimum Age Recommendation: 14 years old



Items required

l   Metric 1.5mm, 2.0mm hex tools

l   Metric 5.5mm, 7.0mm Nut Driver

l   2 Channel Surface Radio System (Minimum)

l   1/10 ESC, Motor & Pinion Gear

l   High-Speed Servo

l   2S LiPo Battery & Compatible Lipo Charger

l   Polycarbonate Paint for Bodies

l   1/10 Truck Tires, inserts and CA Glue

l   Silicon diff oil

l   LOK threadlocker
