　Feature


















PART NO:77500256

Name: PR SB401-R 1/10 Electric  4wd  Off Road Buggy Kit

PR racing have been hard at work developing the next

generation  of the successful SB401 platform and have

made the SB401-R  faster, quieter and easier to

maintain and tune.



A number of key components have been totally redesigned

to produce a better handling and more forgiving car to

drive. The main  focus has  been  on the all new narrow

2.5mm 7075-T6 chassis(Update September 2021) and plastic side-pods, which utilizes

a carbon fibre re-enforced spine to control torsional and

longitudinal flex. The additional flex has proved to

increase grip,  and make the car feel more balanced and

easier to drive leading  to faster, more consistent laps.
　Specification
Chassis

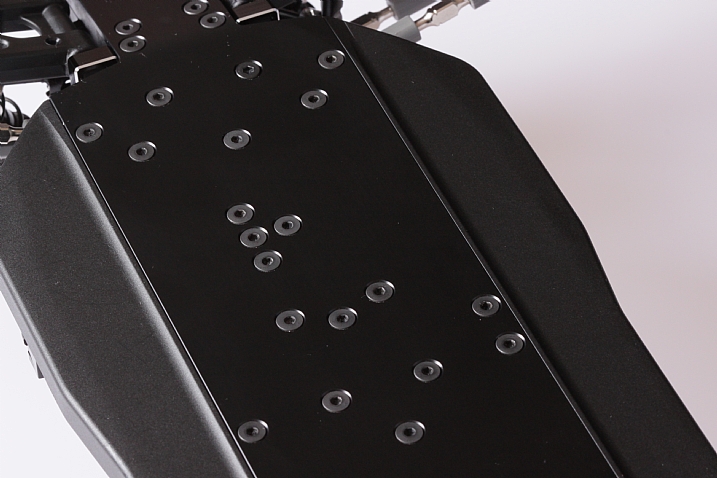

·       Hard anodised 2.5mm 7075-T6 Narrow chassis with side-pods

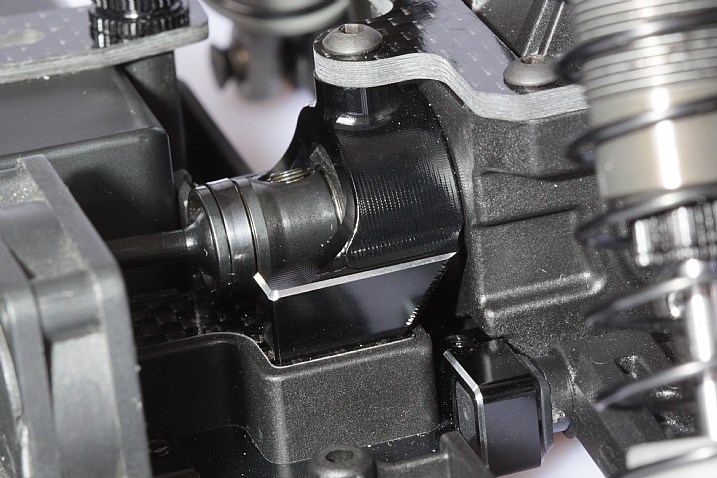

·       Plastic/carbon chassis spine with CNC alloy bulkheads

·       Alloy/Carbon floating servo mount

·       Improved weight distribution with motor and slipper 10mm forward

·       Type R ultra-low CofG Body



Transmission

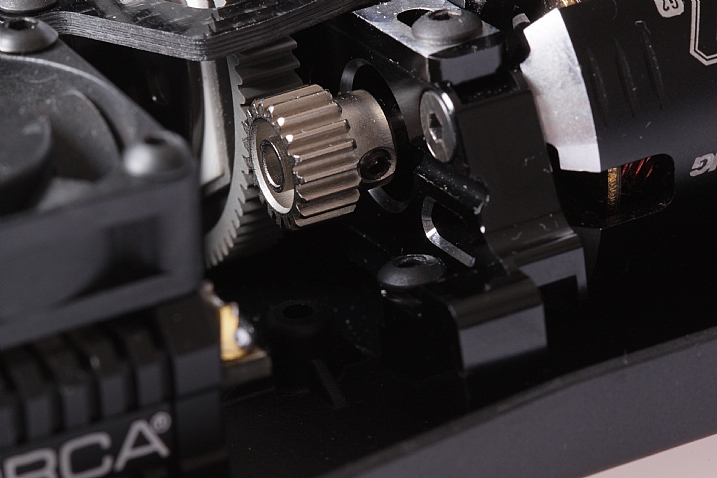

·       New stronger/quieter pinions and ring gears

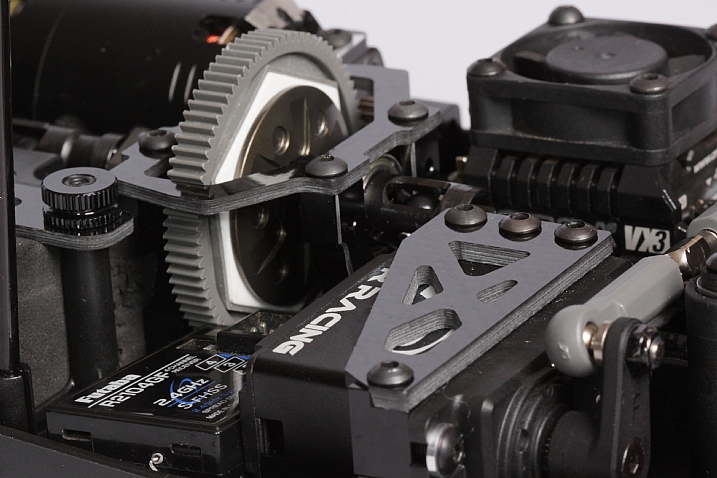

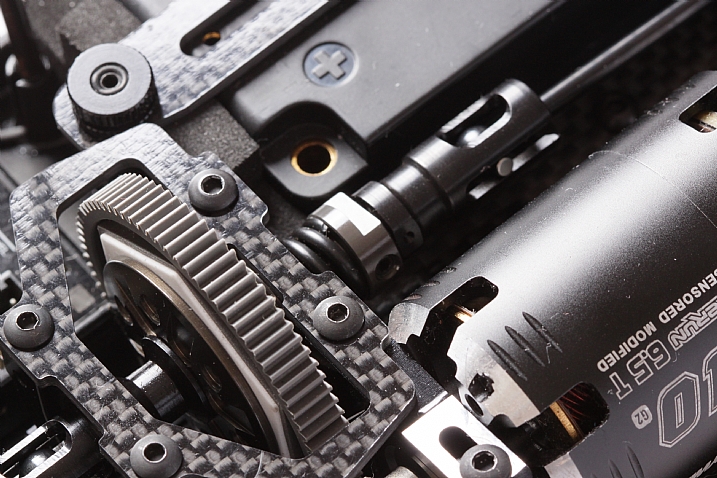

·       New vented slipper assembly with ultra-hard shafts
  and cups for long life

·       Top loading slipper/centre diff mount for easy access

·       Longer diff cups to allow for more droop



Suspension and Steering

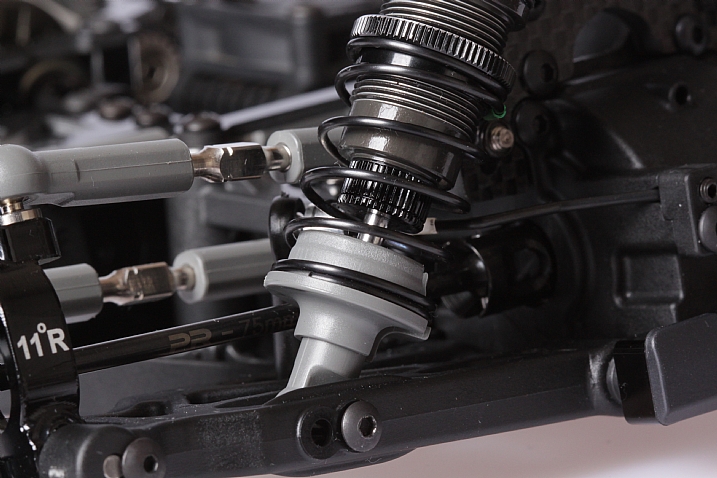

·       12.75mm Type R shocks

·       Lower towers for ultra-low CofG

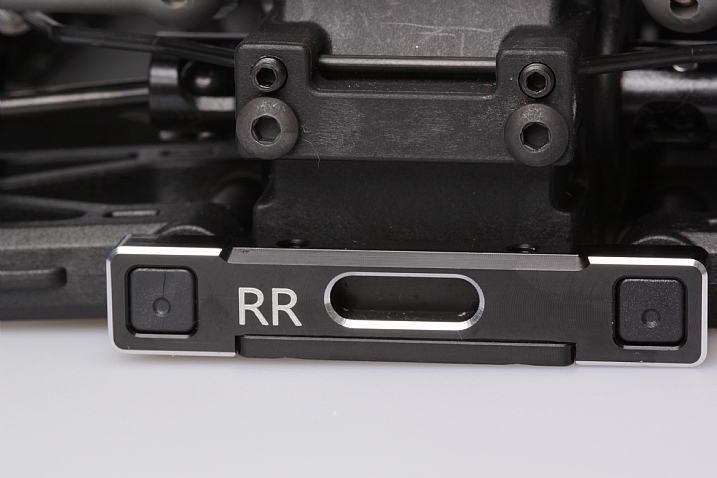

·       Suspension hangers with inserts for toe and anti-squat adjustment

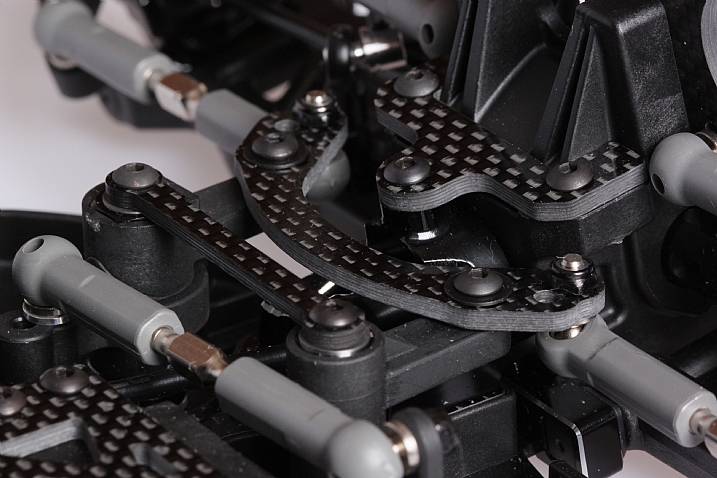

·       Revised Ackerman geometry for improved steering feel

·       New shock seal caps and seals for ultra-smooth operation

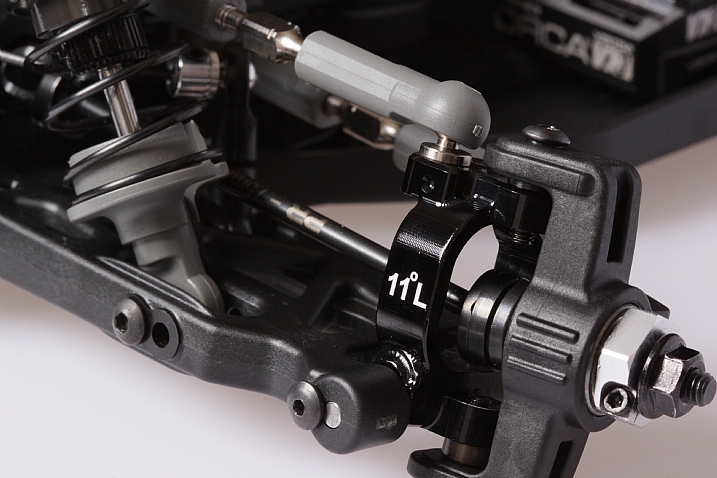

·       11 Degree CNC caster blocks

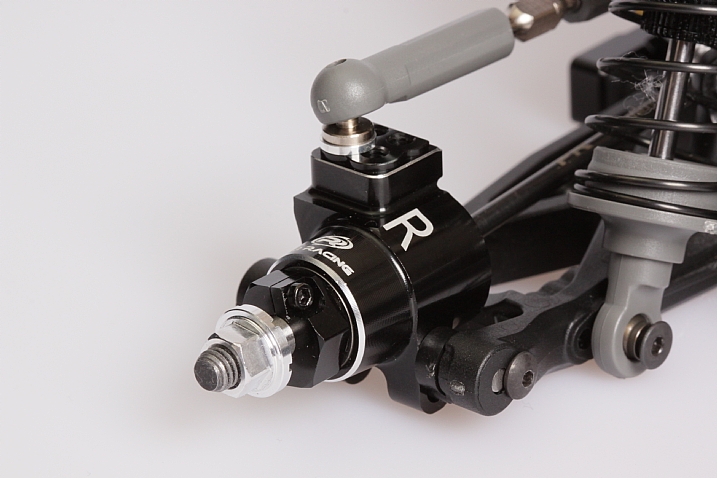

·       CNC alloy rear hubs

·       Gullwing rear wishbones(Graphite)

·       Hard front wishbones

·       New shorter grey ball-cups

·       New high tensile steel turnbuckles

 Type: 1/10th 4wd Off-Road


Power Source: Electric

Wheelbase:287(variable)

Width:245mm-248mm

Gear Ratio: 2.6:1

Weight 1705g-1720g race ready (varies)

Hardware: Full metric

Bearings: Sealed Metal Ball Bearings

Wheels: 12mm hex

Kit: Assembly required

Minimum Age Recommendation: 14 years old.



Items Required to Complete



2 Channel surface frequency radio system

2S LiPo battery & compatible lipo charger

1/10 ESC, motor & pinion gear

High-Speed Servo

1/10 tyres and inserts

Tools, paint for polycarbonate body, tyre glue, threadlock

Silicon diff and shock oil


Links to the manual for this buggy please:

https://www.dropbox.com/sh/aadxmcjzjp49fuu/AADXtDrT9Q3KqXb48Kin0h6ma?dl=0
