 Feature


PART NO:67410406

Name: PR ST1 V3T 1/10 Electric 2WD Stadium Truck  Kit(Gear Diff Version)

 Specification
 PR ST1 V3T

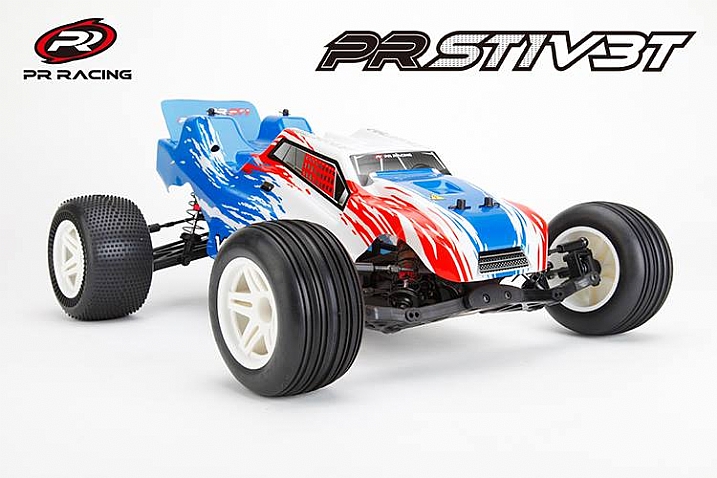

PR Racing introduces the ST1 V3T 10th scale Competition Stadium Truck Pro Kit. This all new Stadium Truck comes with the unique capability to run the motor in front motor configuration. With a bore of 12.75mm the PR Racing Shocks are the biggest competition bore shocks in the market at this time. This allows the vehicle to soak up a wide variety for terrains and competition surfaces without sacrificing speed. PR Racing offers a wide range of shock pistons for their vehicles which can further fine tune the vehicle for competition. Quality can be found throughout the ST1 V3T Stadium Truck’s composites and aluminum materials. The front A arms are Gull wing style which provides increased steering and potential corner speed. The ST1 V3T’s Chassis is produced with high grade CNC Hard anodized aluminum. If you’re looking for a competitive and very versatile 10th scale 2wd Stadium Truck, then look no further than the PR Racing ST1 V3T 2wd Stadium Truck.

Specifications:
• Motor: Electric
• Wheelbase: 287mm

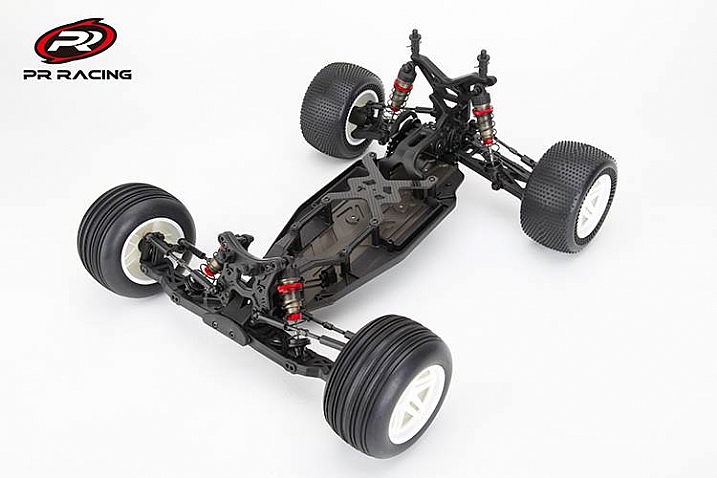

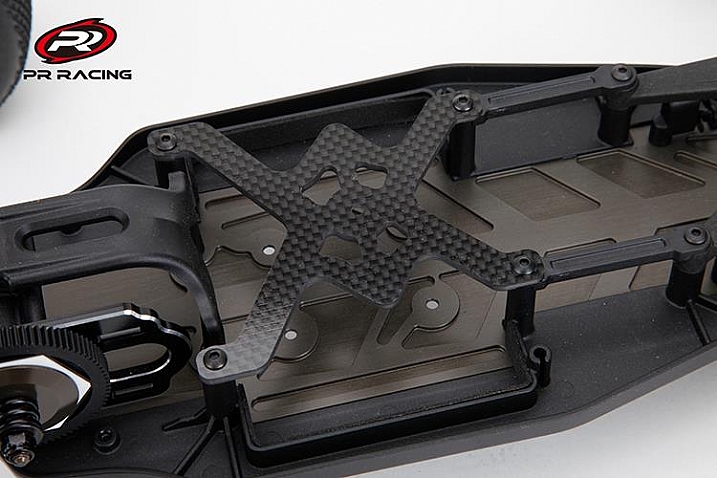

• 25 degree chassis Kick up (3mm CNC Hard anodized 7075 aluminum)
• All Metric Hardware
• Full Precision Ball Bearings

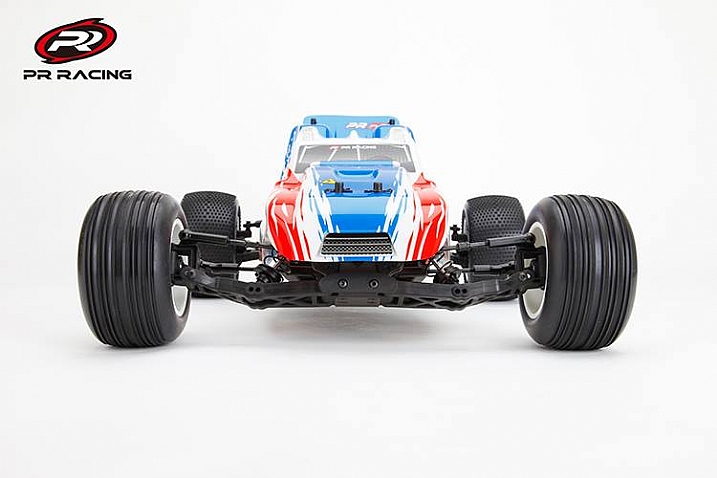

• Gull Wing Suspension Arm Design (Front)
• Same Front and Rear Wheels (12mm Hex)
• Heavy-Duty Turnbuckles

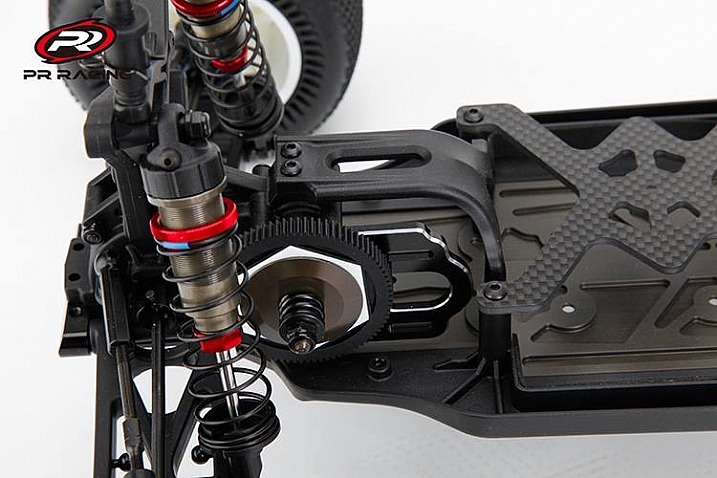

• Dual Disk Slipper Clutch
• 83 tooth spur gear
• Drivetrain: 2wd
• Motor or Engine: Accepts 540 size
• Gear Pitch: 48 Pitch
• Wheel Size: 2.2 in
• Kit/RTR: Kit

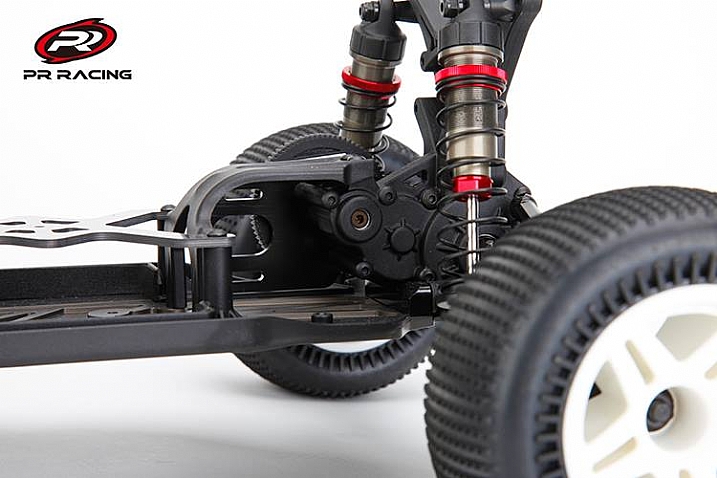

• Shock Type: Oil Filled Aluminum Shocks with bladders
• Body: Unpainted clear body with over spray film
• Minimum Age Recommendation: 14 years

Items required to complete:
• Metric 1.5mm, 2.0mm hex tools
• Metric 5.5mm, 7.0mm Nut Driver
• 2 Channel Surface Radio System (Minimum)
• 1/10 ESC, Motor & Pinion Gear
• High Speed Servo
• 2S LiPo Battery & Compatible Lipo Charger
• Polycarbonate Paint for Bodies
• 2.2 1/10 Truck Tires, inserts and CA Glue
• Silicone Shock/Diff oil


Links to the manual for this buggy please:



https://www.dropbox.com/sh/b4x7wepcgr9h22z/AAB56PjMKHUbzJa4nHSVAdGMa?dl=0
